| Model : | HED-NPF1000 – Info-Lithium Battery Pack |
| Mount Type : | Sony NP-F (Support all units that use NP-F style battery mount) |
| Power Meter : | OLED Display ( Display’s Percentage of Batt Capacity, Charging status, Remining Charging Time ) |
| Display Size : | 28mm | 1.1 Inch |
| Output Voltage : | 7.4V |
| Bat. Cell Chemistry : | Lithium-Ion |
| BMS Capacity Control : | LCA Low Capacity Alarm ( BMS Auto Capacity Control ) – Patent Application Pending |
| Battery Capacity : | 9600 mAh / 9,6Ah / 71 Wh – On AIR Transport Certification |
| Maximum Load : | Up to 12A / 175W |
| USB-C Input/Output : | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (20W) | PD3.0 / QC2.0 / QC3.0 / PPS / AFC / FCP / SCP /DCP-1.5A / APPLE-2.4A |
| DC Input/Output : | 6V ~ 8.4V / 55W ( Max ) |
| Battery Control : | IDL Identificational Display LED |
| Battery Charge : | 7.8V / 8.0A / 135W ( Max ) |
| Dimensions (WxHxD) : | 105 x 75 x 52 mm | 4.13 x 2.95 x 2.04 Inch |
| Operating Temperature : | –20°C to +45°C | –4°F to +113°F |
| Weight : | 540 g | 1.19 lb |
| Charging Method : | For optimal charging performance and maximum capacity, use the HEDBOX HED-DC55, RP-DC50, or HED-DC45 chargers with the RP-DFM50 charger plate, or the USB-C charger HED-DC10. |
HED-NPF1000
SMART NPF High Capacity 9600mAh
LCA Low Capacity ALARM
OLED Display with IDR System
DC-In/Out and USB-C In
Hedbox’s new NPF battery introduces a compact Sony NPF style Smart Battery Pack with high performance and safety design. A notable feature is the LCA Low Capacity Smart Alarm, alerting users when the battery is below 20% capacity. The IDL Identificational Display LED Monitor provides control and shows battery status. The high-contrast OLED Display offers clear visibility of Battery Capacity, Remaining Operational Time, Battery Circle usage, and Charging function day and night. With an extra bidirectional DC power port, and USB-C charging ports, the new HED-NPF1000 can power various accessory devices. Conveniently, the DC and USB-C power input allow the battery to be charged using standard USB or DC 8.6V chargers.

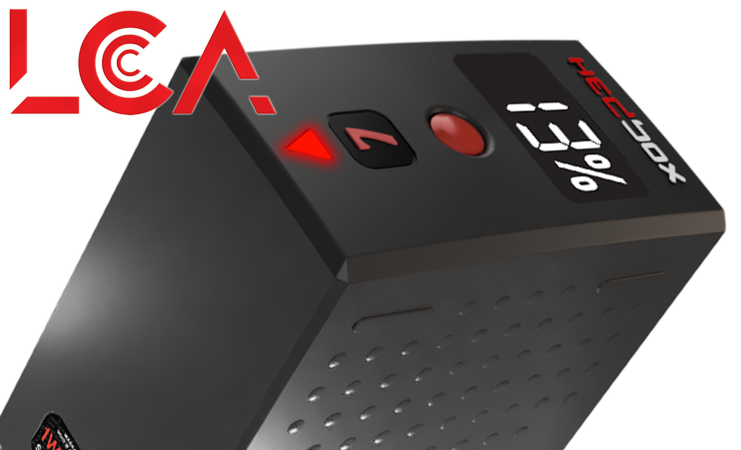

SMART Low Capacity ALARM (LCA)
Hedbox R&D is excited to introduce a groundbreaking innovation to the worldwide video & photo market: a cutting-edge continuous Smart monitoring alarm designed for low battery capacity. With a pending patent, our IDL Emergency ALARM is engineered to activate when the battery capacity level drops below 20%. It triggers a distinctive and easily visible flashing IDL – Identification Display Led in silent mode (no buzzer). This exclusive feature serves as a prompt for users, signaling that the battery has fallen below the 20% capacity threshold.

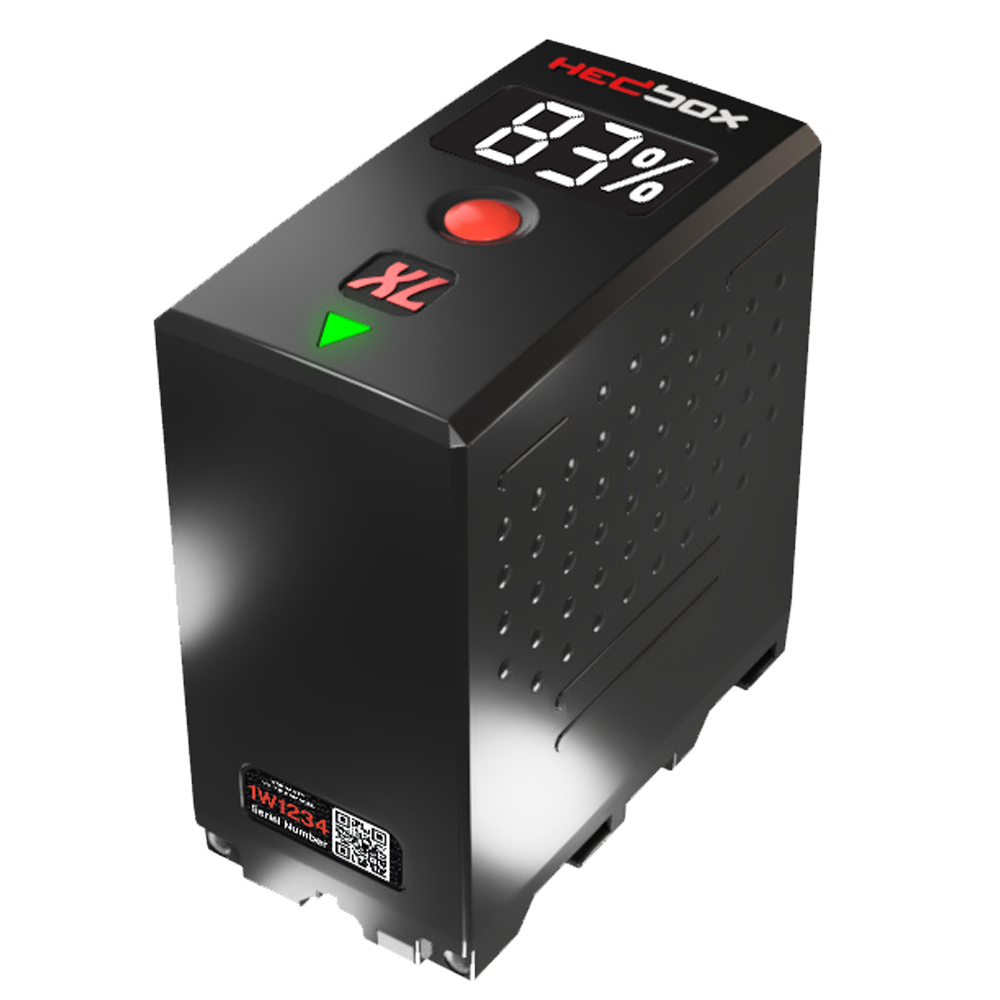

Capacity Percentage Display
The OLED Display shows the battery capacity status in percentage (%).

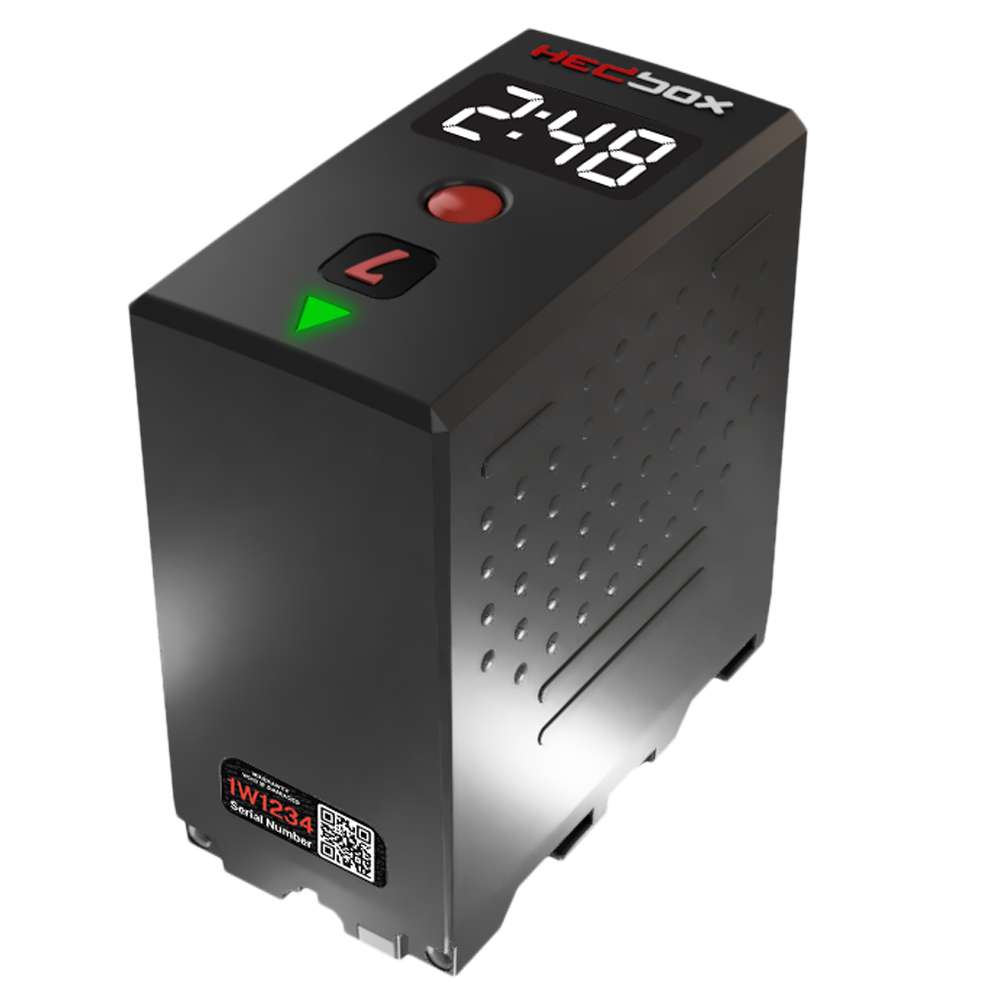

Remaining Time Display
The OLED Display shows the battery capacity remaining time in minutes
Total Usage Display
The OLED Display shows the total usage of the battery lifetime.
The usage is counted per circle (one circle is total of 9.6Ah energy supplied )
The usage is counted per circle (one circle is total of 9.6Ah energy supplied )
Charging Display
In battery charging process, regardless of the power input source.
The OLED Display shows the charging process of the battery.
The OLED Display shows the charging process of the battery.

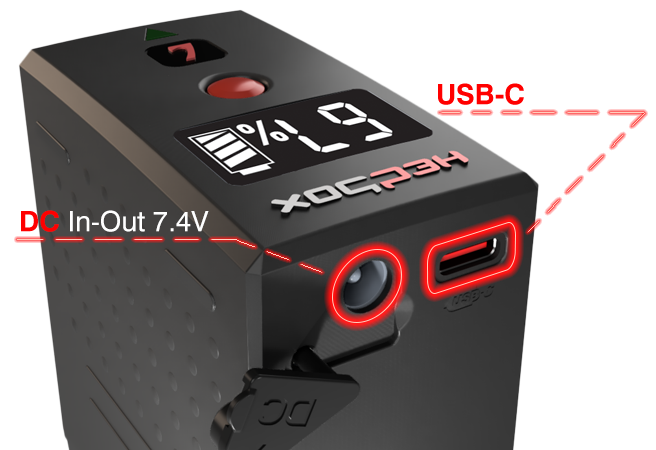

Additional Power In/Out’s
USB-C PD3.0 / 20w and DC
The HED-NPF1000 battery features a USB-C power input and DC power In/Out, allowing direct charging via any USB-C charger or an 8.6V DC power source with a maximum output of 20W. The USB-C port supports multiple charging protocols, including PD3.0, QC2.0, QC3.0, PPS, AFC, FCP, SCP, DCP-1.5A, and Apple-2.4A, ensuring broad compatibility. This versatile design eliminates the need for a dedicated NPF battery charger, offering users a more convenient and efficient charging solution. Additionally, the extra DC power output can be used to supply power to various external accessories.

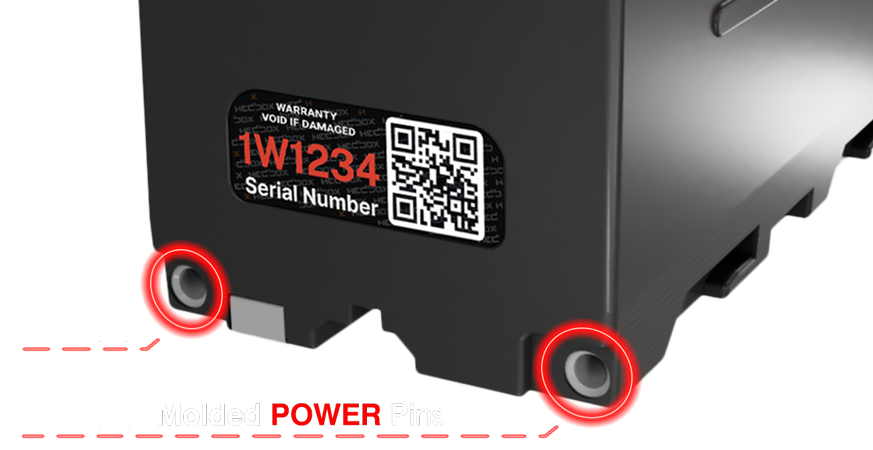

Injection Molded Power Pins
The HED-NPF1000 battery incorporates advanced injection molded power pins, providing a secure and highly durable connection for reliable power delivery. This innovative production technology integrates the power pins directly into the battery housing, creating a strong, compact and unbreakable bond (watch the Video).

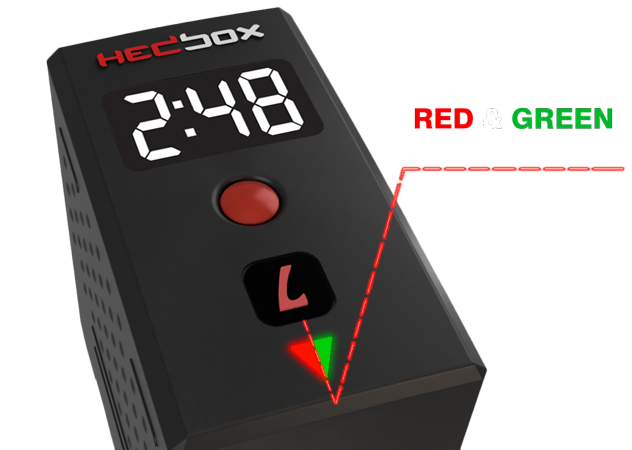

IDL Control LED Display
The battery is equipped with a dual-color (RED & GREEN) LED control display, providing a clear indication of various battery statuses. When connected to a USB-C port or a standard NPF charger for charging, the LED flashes RED, notifying the user that the battery is actively charging. Once fully charged, the LED switches to a constant GREEN, indicating the battery is ready for use. This feature offers users convenient visual monitoring of the battery’s charging status.
Ultra High Capacity of 9600 mAh
The HED-NPF1000 showcases cutting-edge HEDBOX battery technology. Designed in the same size as the standard Sony NPF-970 battery, it boasts an impressive 9600 mAh capacity, that is 30% higher energy density than the original. Despite the increased capacity, the battery maintains reliable and safe operation thanks to its advanced Battery Management System (BMS).
USB-C LED Cable (Included)
The cable has an LED display that in real-time show charging power, charging status. Built-in smart chips monitor the charging power and adjust current and voltage automatically, avoiding damage to the battery in case of an unstable current. (Please note display module just show charging power, it neither increases nor decrease charging current)
– Cable Lenght: 1.2m / 3.93 ft
– Cable Type: USB-C to USB-C
– Power Delivery 3.0, Qualcomm Quick Charge 5.0 protocol (2.0/3.0/4+)
– Super fast charging 2.0 and PPS 65W/45W/25W
Data Communication with Camcorder
Using its integrated data communication chip, the battery connects with the camcorder to show the precise power percentage on the LCD screen.
Battery Pack HED-NPF975 can be charged with next Chargers using RP-DFM50 battery charging plate or USB-C PD 3.0 Power Charging Port
RP-DC50 - Battery Charger
HED-DC10 - USB-C Charger
RP-DC30 - Battery Charger
RP-DFM50 - Battery Charger Plate
Design made in Switzerland
With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.
Eco-Green Consistency
All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.
Worldwide Distribution
With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.
IATA Transport Regulations
All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.
Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you
Tech specifications
Supported products
Video presentation of product
Package includes
Under the FAA, IATA, PHMSA, and IMDG regulations, the HED-NPF1000 battery is factory packed in an anti-static plastic holder and put into a cardboard box with internal shock resistance protection. This kind of packaging makes travel and transportation safe on the Sea, Air, and Road.
- 1x BATTERY PACK
- 1x RPC-D65W USB-C LCD Fast Charging Cable
- 1x QR Code Card - User Manual
- 1 Year Limited Warranty
- On-Line Product Registration
