| Model : | HED-NPF665 – Info-Lithium Battery Pack |
| Mount Type : | Sony NP-F (Support all units that use NP-F style battery mount) |
| Power Display : | LED Display ( Green and Red Color Display’s Batt Charging status ) |
| Bat. Cell Chemistry : | Lithium-Ion |
| Battery Voltage : | 7.4 V |
| Battery Capacity : | 3200 mAh / 3,2Ah / 23.7 Wh – On AIR Transport Certification |
| Maximum Load : | Up to 7A / 50W |
| USB-C Input : | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (20W) |
| Battery Control : | IDL Identificational Display LED |
| Data Comm. : | Built-in Microprocessor for Data Communication with Sony |
| Battery Charge : | 7.8V / 8.0A / 135W ( Max ) |
| Dimensions (WxHxD) : | 105 x 75 x 52 mm | 4.13 x 2.95 x 2.04 Inch |
| Operating Temperature : | –20°C to +45°C | –4°F to +113°F |
| Weight : | 540 g | 1.19 lb |
| Charging Method : | For optimal charging performance and maximum capacity, use the HEDBOX HED-DC55, RP-DC50, or HED-DC45 chargers with the RP-DFM50 charger plate, or the USB-C charger HED-DC10. |

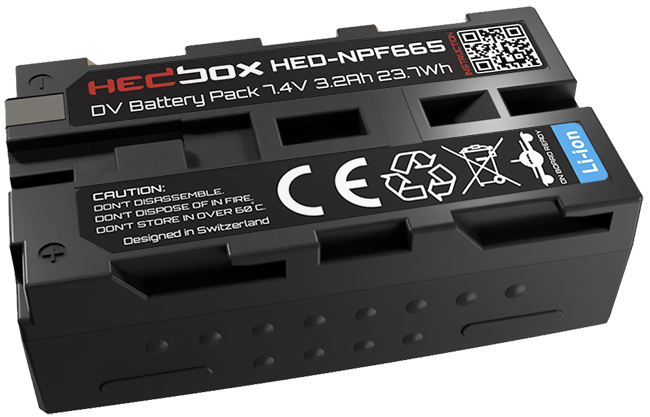

HED-NPF665
NPF High Cpacity Battery 3200mAh
IDL Identification Display Led Monitor
USB-C Input PD3.0 20W
Hedbox’s new NPF series combines a compact design with high capacity, exceptional performance, and enhanced safety. A key highlight is the dual color IDL Identification Display LED Monitor, paired with a USB-C port. The IDL offers a clear visual display of the battery’s charging status, while the USB-C input allows for easy charging with standard USB-C chargers.

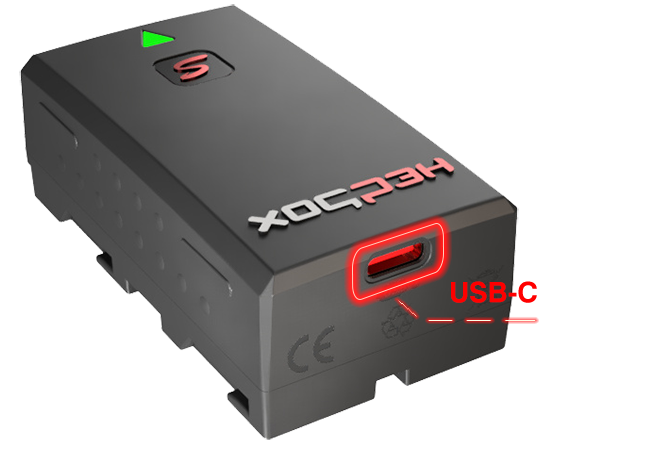

Additional Power Input
USB-C PD3.0 / 20w
The HED-NPF665 battery is enhanced with a USB-C power input, allowing it to be charged directly using any USB-C charger that supports 5V/3A, 9V/2A, 12V/1.5A, or 15V/1A (20W). This USB-C port is compatible with a wide range of charging protocols, including PD3.0, QC2.0, QC3.0, PPS, AFC, FCP, SCP, DCP-1.5A, and APPLE-2.4A. This flexible design eliminates the need for a dedicated NPF battery charger, providing users with a convenient and efficient charging solution.

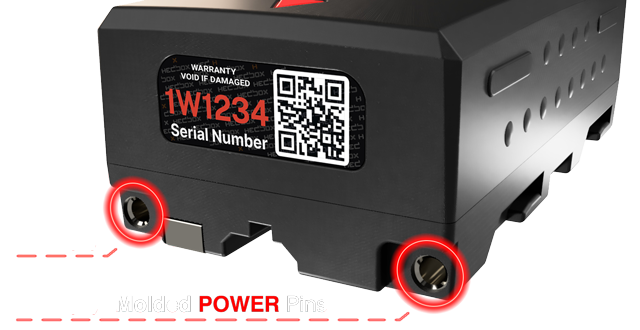

Injection Molded Power Pins
The HED-NPF665 battery incorporates advanced injection molded power pins, providing a secure and highly durable connection for reliable power delivery. This innovative production technology integrates the power pins directly into the battery housing, creating a strong, compact and unbreakable bond (watch the Video).

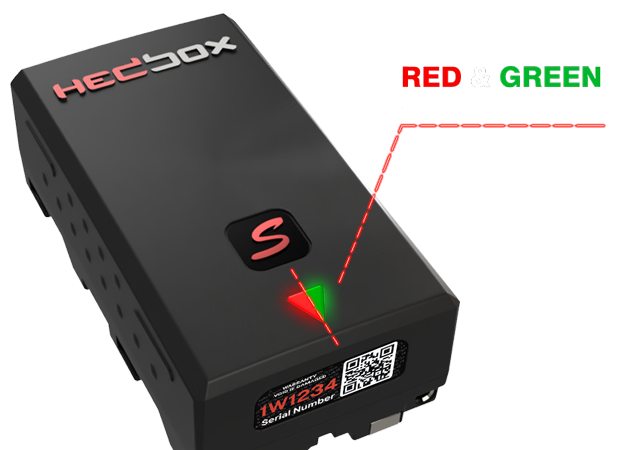

IDL Control LED Display
The battery is equipped with a dual-color (RED & GREEN) LED control display, providing a clear indication of various battery statuses. When connected to a USB-C port or a standard NPF charger for charging, the LED flashes RED, notifying the user that the battery is actively charging. Once fully charged, the LED switches to a constant GREEN, indicating the battery is ready for use. This feature offers users convenient visual monitoring of the battery’s charging status.
Ultra High Capacity of 3200 mAh
The HED-NPF665 showcases cutting-edge HEDBOX battery technology. Designed in the same size as the standard Sony NPF-550 battery, it boasts an impressive 3200 mAh capacity, that is 30% higher energy density than the original. Despite the increased capacity, the battery maintains reliable and safe operation thanks to its advanced Battery Management System (BMS).

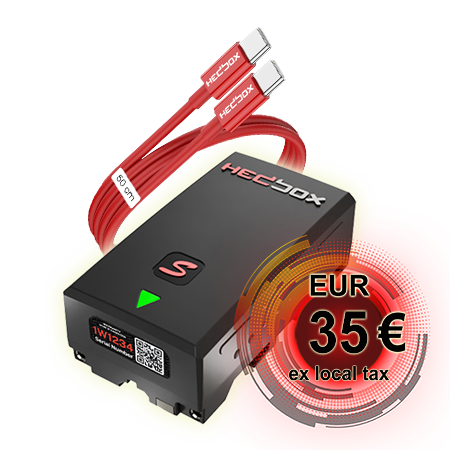

USB-C to USB-C Cable (Included)
A USB-C to USB-C 35W charging cable is included in the battery package, ensuring the battery can be charged and used straight out of the box. This cable is specifically designed for compatibility with all HEDBOX NPF battery series.
– Cable Lenght: 50 cm / 19.5 In
– Cable Type: USB-C to USB-C
– Power Delivery 3.0, Qualcomm Quick Charge 5.0 protocol (2.0/3.0/4+)
– Super fast charging 2.0 and PPS 35W
Data Communication with Camcorder
Using its integrated data communication chip, the battery connects with the camcorder to show the precise power percentage on the LCD screen.
Battery Pack HED-NPF555 can be charged with next Chargers using RP-DFM50 battery charging plate or USB-C PD 3.0 Power Charging Port
RP-DC50 - Battery Charger
HED-DC10 - USB-C Charger
HED-DC55 - Battery Charger
HED-DC45 - Battery Charger
Design made in Switzerland
With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.
Eco-Green Consistency
All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.
Worldwide Distribution
With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.
IATA Transport Regulations
All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.
Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you
Tech specifications
Supported products
Video presentation of product
Package includes
Under the FAA, IATA, PHMSA, and IMDG regulations, the HED-NPF665 battery is factory packed in an anti-static plastic holder and put into a cardboard box with internal shock resistance protection. This kind of packaging makes travel and transportation safe on the Sea, Air, and Road.
- 1x BATTERY PACK
- 1x USB-C Charging Cable (Lenght 50cm)
- 1x QR Code Card - User Manual
- 1 Year Limited Warranty
- On-Line Product Registration
1x BATTERY PACK
1x USB-C Charging Cable (Lenght 50cm)
