| Model : | HOLD II Multipurpose Dur-Aluminium Alloy Cheese Plate |
| Battery Plate Mount : | 4x M3 threaded holes / V-Mount ; Gold -Mount |
| Support Mount A: | 95x – 1/4″-20 threaded holes |
| Support Mount B: | 5x – 3/8″-16 threaded holes |
| Support Mount C: | 7x – Fly Holes |
| Side Mounting : | 13x – 1/4″-20 threaded holes |
| Material : | High-Quality Dur-Aluminium Alloy |
| Anodizing Color: | Black |
| Surface Treatment : | Sand Blasting – Deep Anodizing |
| Dimensions (WxDxH) : | 5.6 x 0.32 x 3.2″ / 142 x 8 x 82 mm |
| Weight : | 5.3 oz / 150 g |
| Mounting : | Multiple mounting holes for universal Battery Plate connection |
HOLD II
Support you can trust

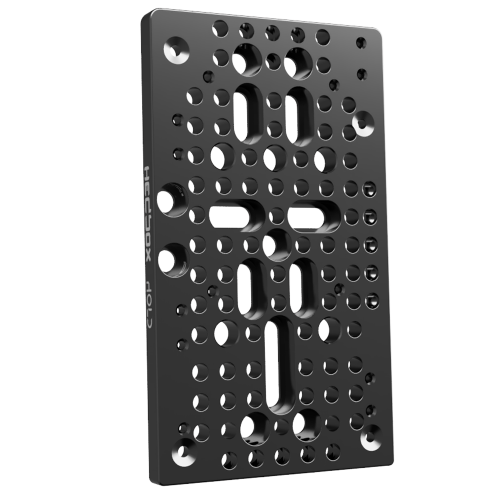

Aluminum various hole thread type mounting Multi-Purpose Cheese Plate
The HEDBOX HOLD II Cheese Plate is a multi-purpose anodized precision-machined aluminum camera accessory mounting plate. Constructed from dur-aluminum alloy HOLD II represent high quality product that enables you to mount various accessories and a separately available battery plate on the back of your camera. HOLD II is specially designed for UNIX family battery plates. The plate is 8 mm (5/16″) thick and features 120 various type of threaded holes for accessories to be screwed into. Thanks to threaded holes positions, this frame-style cheese plate is compatible with – Anton Bauer, IDX, Ikan, Shape, FXLion, Cinegears, Generay, Swit, Blueshape, Bebop, Dynacord, Hakwoods, Switronix, and many others.
120 various threaded holes
Mounting Threads

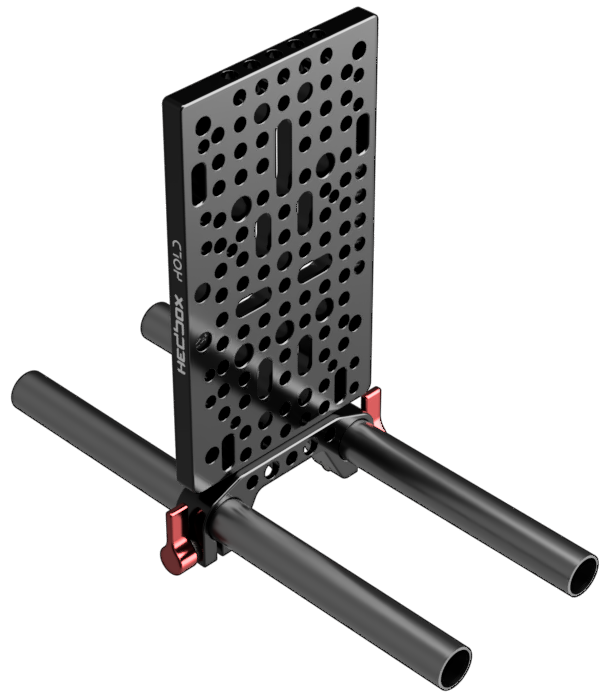

HEDBOX HOLD II provides an option for mounting various support products onto your camera rig’s 15mm LWS rod system.
– 95x – 1/4″-20 threaded holes
– 5x – 3/8″-16 threaded holes
– 7x – Fly Holes
– 13x – 1/4″-20 Side Mounting threaded holes
Incorporating multiple hole threads, the HOLD II is the perfect solution for your camera rig.
Multiple 1/4″- 20
Side Mounting Threads
HEDBOX HOLD provides an option for mounting various Camera accessories on the side of the plate, thanks to multiple 1/4″- 20 Mounting Threads incorporated on the side of the plate.
UNIX - V-Mount Power Adapter Plate
UNIX-BM - V-Mount Power Adapter Plate
UNIX-DC - V-Mount Power Adapter Plate
ROD CLAMP
Design made in Switzerland
With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.
Eco-Green Consistency
All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.
Worldwide Distribution
With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.
IATA Transport Regulations
All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.
Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you
Tech specifications
Supported products
Package includes
Under transport regulation, HOLD II Aluminium Cheese Plate is factory packed in a cardboard box with internal shock-resistance protection. This kind of packaging makes it travel and transportation safety for the Sea, Air and Road.
- 1 x HOLD II Aluminium Cheese Plate
- 2 x 1/4"-20 Screw length 1/4"
- 2 x 1/4"-20 Screw length 3/4"
- 1 x M3x12 Set Screw (4pcs)
- 1 x 3/16" HEX Key
- 1x QR Code Card - User Manual
- 1x Free On-Line Product Registration
1 x HOLD II Aluminium Cheese Plate
2 x 1/4"-20 Screw length 1/4"
2 x 1/4"-20 Screw length 3/4"
1 x M3x12 Set Screw (4pcs)
1 x 3/16" HEX Key
1x Free On-Line Product Registration
