UNIX-FX9 designed for

Sony ILME-FX6 and PXW-FX9

With regulated PCB power, thru EIAJ-05 Male/Right Angle connector mounted on breakaway DC cable. UNIX-FX9 provides upconverted DC19.5V necessary for powering Sony ILME-FX-6 and PXW-FX9 Camcorders.





High Quality AluminiumV-lock release

Adopting technology that allowed us to use a high-quality aluminum alloy V-lock release, the lock and unlock provides up to 10,000 cycles for a V-mount battery on the Unix plate.





3 x D-Tap DC Power Output

Unix provides three D-Tap 14.8V DC power outputs. Three D-taps allow for extra powering for cameras, on board recorders, LED lights, monitors, remote follow focus, wireless transition systems, etc.

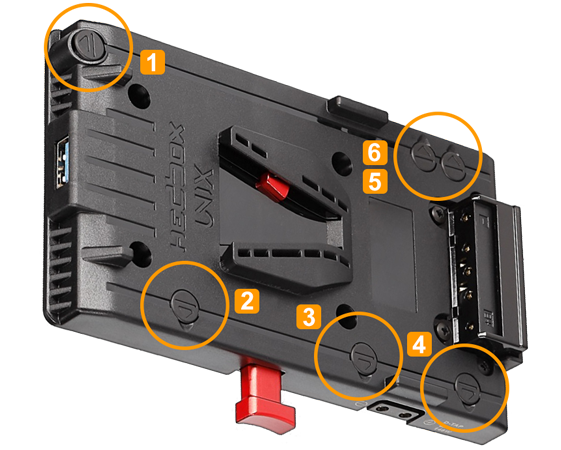

Multiple Mounting holes for universal camera connection

With multiple mounting holes, (4 x M3x12 screws provided) Unix is able to mount on to any device or camera connection.





Build-in USB 5V / 2.1A Power Out Socket

The USB 5V/2.1A output can be used to power any external USB electronic devices. This function allows you to use the Unix V-lock plate like a power station to charge your cell phone, tablet, or any other electronic devices that can be powered with USB 5V power.



Metal Back Panel Support

With full Metal Back panel, UNIX body have durable and strong support. This provides a strong and firm connection between Camera or other electronic devices and UNIX plate itself.




UNIX-FX9

Find a store near you

NERO S - Pro Battery Pack
NERO S - Pro Battery Pack
NERO M - Pro Battery Pack
NERO M - Pro Battery Pack
NERO L - Pro Battery Pack
NERO L - Pro Battery Pack
HBP-NPF - NPF Battery Converter Plate
HBP-NPF - NPF Battery Converter Plate

Design made in Switzerland

With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.

Eco-Green Consistency

All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.

Worldwide Distribution

With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.

IATA Transport Regulations

All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.

Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you

Tech specifications

Model :UNIX-FX9 V-Mount Adapter Power Plate
Battery Mount :V-Lock Mount
D-Tap Power Out 1 :DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
D-Tap Power Out 2 :DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
D-Tap Power Out 3 :DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
USB Output :DC 5V / 2.1A /10W (Max)
Breakaway DC Cable :DC 19.6V / 6A / 120W (Max) 50cm (length)/ Regulated EIAJ-05 Male/Right Angle
V-lock release : High-Quality Aluminium Alloy
Operating Temperature :–20°C to +45°C (–4°F to +113°F)
Dimensions (WxDxH) :146 x 102 x 26 mm
Weight :185 g
Mounting :Multiple mounting holes for universal camera connection

Supported products

SONY | PXW-FX9
SONY | ILME-FX6

Package includes

Under transport regulation, UNIX-FX9 V-lock Plate is factory packed in a cardboard box with internal shock-resistance protection. This kind of packaging makes it travel and transportation safety for the Sea, Air, and Road.

  • 1 x UNIX-FX9 V-Mount Plate
  • 1 x Set Screw M3x12 ( 4pcs)
  • 1x QR Code Card - User Manual
  • 1 x 2 Year Limited Warranty
  • On-Line Product Registration
1 x UNIX-FX9 V-Mount Plate
1 x Set Screw M3x12 ( 4pcs)
1x QR Code Card - User Manual
1 x 2 Year Limited Warranty
On-Line Product Registration
